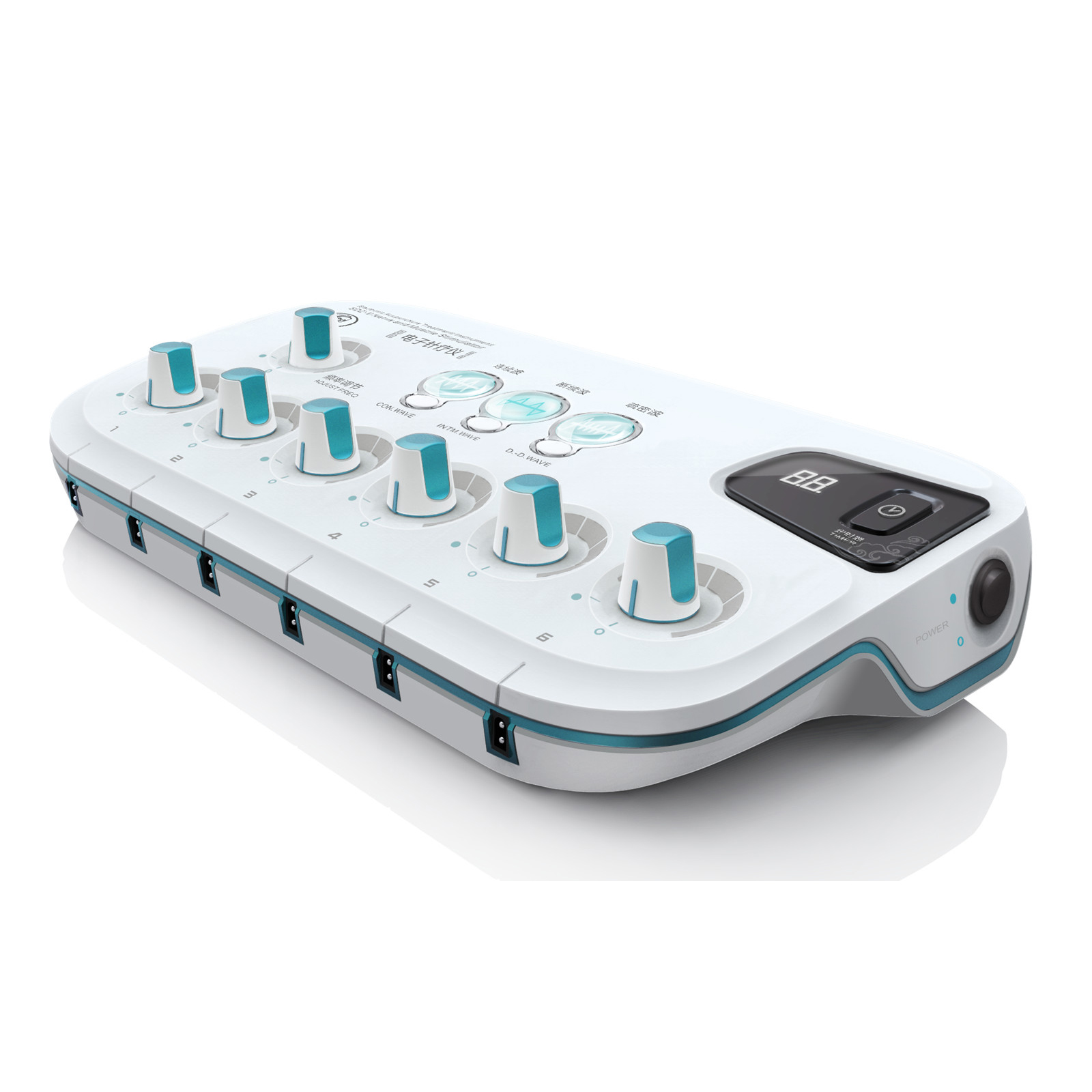

Acupuncture stimulator SDZ-II Hwato

• 6 independently adjustable output channels for targeted treatment.
• Digital timer adjustable from 0 to 60 minutes.
• Frequency range: 1 to 100 Hz.
• Output power adjustable from 5 to 50 V (at 500 Ohm).

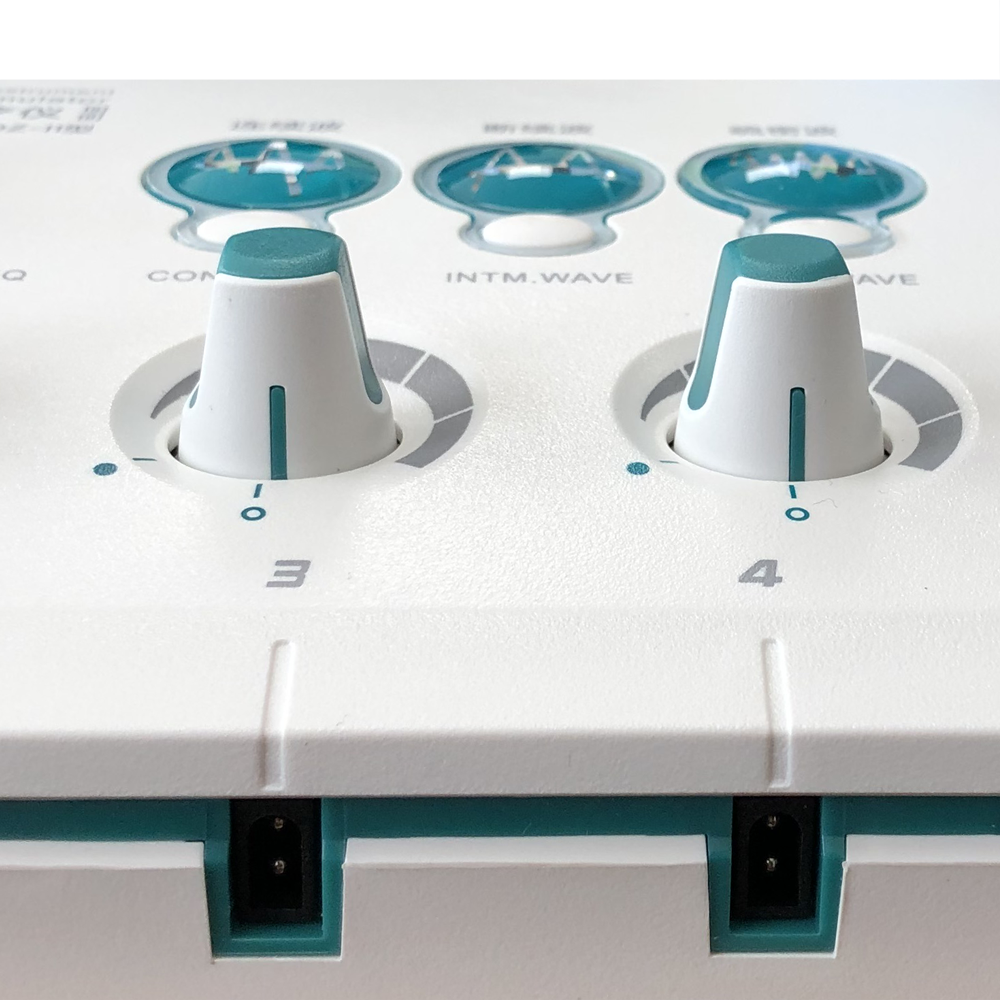

• 3 selectable waveforms: continuous, intermittent, and alternating.
• Operates on 9V DC (battery or mains power).

TECHNICAL DETAILS:

• Output channels: 6 independent channels.
• Timer: 0 – 60 minutes adjustable.
• Frequency range: 1 – 100 Hz adjustable.
• Output voltage: 5 – 50 V (at 500 Ω load).
• Output current (Blue model): ≤ 50 mA.
• Waveforms: Continuous, Intermittent, Dense–Disperse
• Pulse width: ~1 ms
• Waveform type: Asymmetric biphasic square wave
• Input power: ~10 VA
• Max output power: ~0.3 VA (at 2500 Ω load)
• Power supply: DC 9 V (via adapter or battery), AC 100–240 V → DC 9 V
• Output connector: 3.5 mm jack
• Dimensions: 260 × 190 × 110 mm (standard) / 292 × 156 × 47 mm (alt. model)
• Weight: 0.5 – 1.2 kg (varies by version)
• Certification: CE marked
