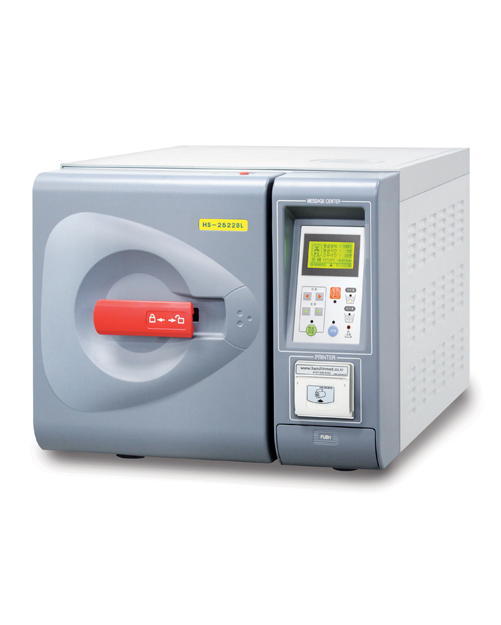

Autoclave, Class B (22 L) HS-2522BL

• 22-liter chamber capacity suitable for small to medium instrument loads.
• Class B autoclave meeting EN 13060 standards for safe sterilization.
• Advanced vacuum and steam sterilization for thorough and fast cycles.
• User-friendly digital control panel with preset sterilization programs.
• Built-in safety features including door lock and overpressure protection.
• Stainless steel chamber for durability and easy cleaning.
• Suitable for dental, medical, and laboratory sterilization needs.

TECHNICAL DETAILS:

• Model: HS-2522BL
• Overall Dimension: W513 × D625 × H442 mm
• Chamber: ID Ø255 × L447 mm, Volume: 22 L, Material: STS 316L
• Max. Working Pressure: 2.4 bar
• Min. Working Pressure: -1.00 bar
• Max. Working Temperature: 138.0 °C
• Test Pressure: 5.13 bar
• Tray: W195 × D375 × H18 mm, 4 ea
• Reservoir / Collection Container: Volume: 6.0 L / 6.0 L (Full water level)
• Operating Temperature: 121.0 °C ~ 135.0 °C (Display Resolution: 0.1 °C)
• Sterilant: Saturated Steam
• Air Removal Method: Vacuum
• Air Removal Device: Vacuum Pump (Diaphragm type)
• Air Filter: Filtration efficiency 99.999% for 0.3 μm particles
• Controls: Microprocessor
• Display: Graphic LCD (LED backlighting), Resolution: 128 × 64 dots
• Panel Printer (Optional): Direct Thermal Printing type, Paper Roll: W58 × Ø40 mm, L = 13 m
• Power Source: AC 220 V, 50/60 Hz
• Power Consumption: 2,700 W
• Net Weight: 52 kg
• Environmental Conditions (IEC 61010-1): Altitudes up to 2,000 m; Temperature +5 °C to +40 °C; Max. Relative Humidity 80% up to 31 °C decreasing linearly to 50% at 40 °C;
• Mains voltage fluctuations up to ±10%; Installation Category II; Pollution Degree 2
