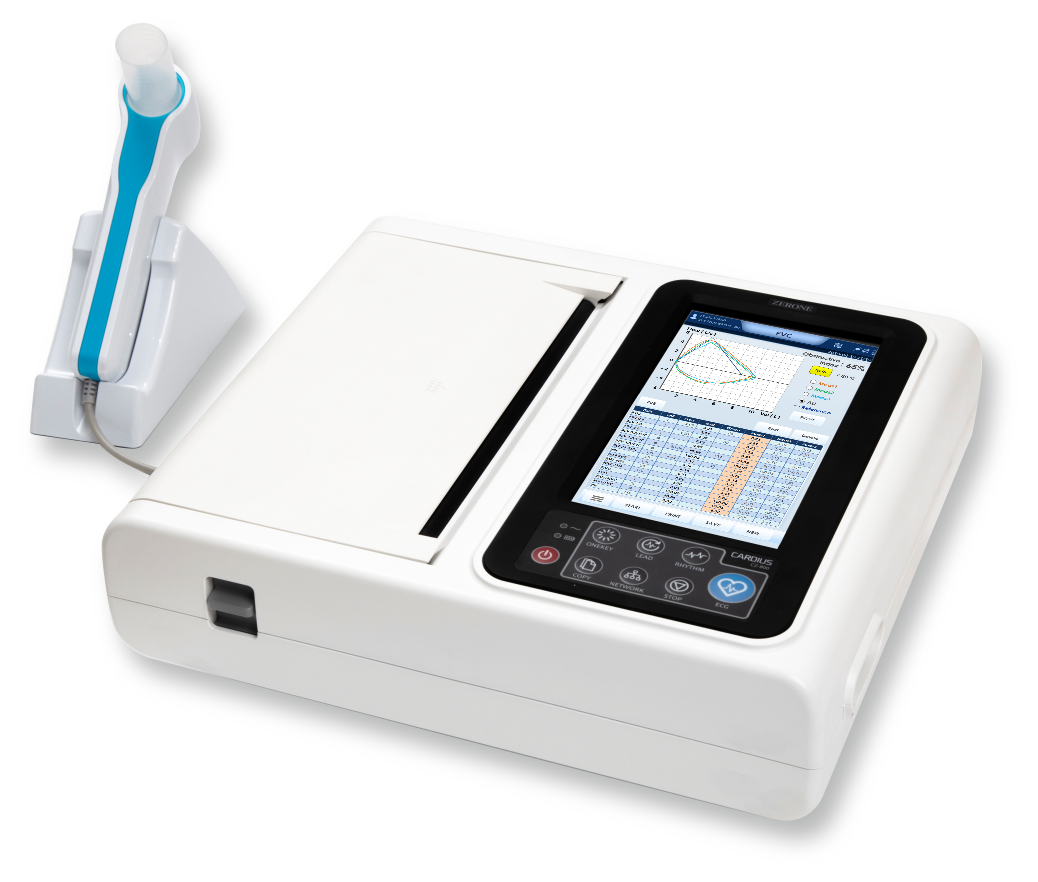

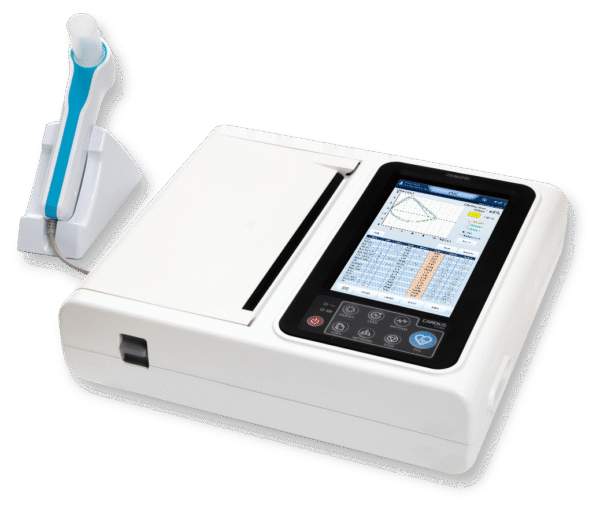

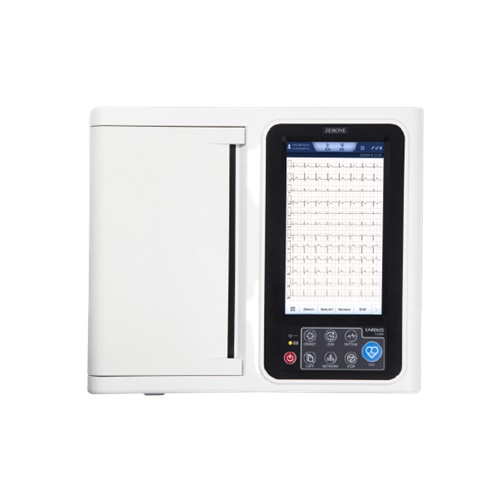

ECG Cardius CZ-800, Zerone

• 12-channel digital ECG with built-in spirometer for combined cardiac and pulmonary assessment
• 8-inch color TFT LCD touchscreen with full alphanumeric keyboard for intuitive operation
• High-resolution signal sampling at 8,000 samples per second, supporting multiple print formats
• Internal memory stores up to 500 ECG records, with USB export in JPG, PDF, and XML formats
• Rechargeable Li-ion battery allows up to 4 hours of continuous use or approximately 200 printouts
• Offers dual printing options (roll paper and Z-fold) and features built-in arrhythmia analysis and auto-interpretation.

TECHNICAL DETAILS:

• Leads / Channels: 12-lead, 12-channel simultaneous acquisition.
• Display: 8″ color TFT wide (800 × 480).
• Preview: 12-channel ECG waveform preview.
• Dimensions / Weight: 353 (W) × 302 (D) × 102 (H) mm; approx. 3.7 kg.
• Basic Measurements: HR, PR/RR, QRS, QT/QTc, P/QRS/T axis, RV5/SV1/R+S.
• Recording Modes: 12CH, 6CH+1RHY, 3CH+1RHY, 3CH+2RHY, 3CH+3RHY, long-term (1, 3, 5, 10 min), arrhythmia info, disclosure (10 min), interpretation reports.
• Recording Features: Auto analysis, rhythm, arrhythmia detection, pacemaker pulse detection, lead-off detection, exceeded range alerts.
• Data Storage: 500 ECGs internal + USB memory.
• Communication: USB, PACS.
• File Formats: PDF, JPG, BMP, XML, MFER, DICOM.
• Power Supply: AC 100–240V (50/60Hz), 105VA max, or battery operation.
• Battery: Rechargeable Li-ion 10.89V / 2.6A (option 5.2A); up to 4 hours use (~200 prints).
• Environment: Operating temp 5–40 °C, humidity 10–95%, pressure 70–106 kPa.
